Type: Bug
Resolution: Done
Priority: P3: Somewhat important
Fix Version/s: 5.0.0 Beta 1
Affects Version/s: 4.7.2
Component/s: GUI: Painting
Labels:
None
Environment:
Windows 7 64bit, Qt 4.7.2, intel core i5 - 6gb ram,

Commits:
b0a6c521ab85ef13ffd39e6502d6ab45dda25d7f

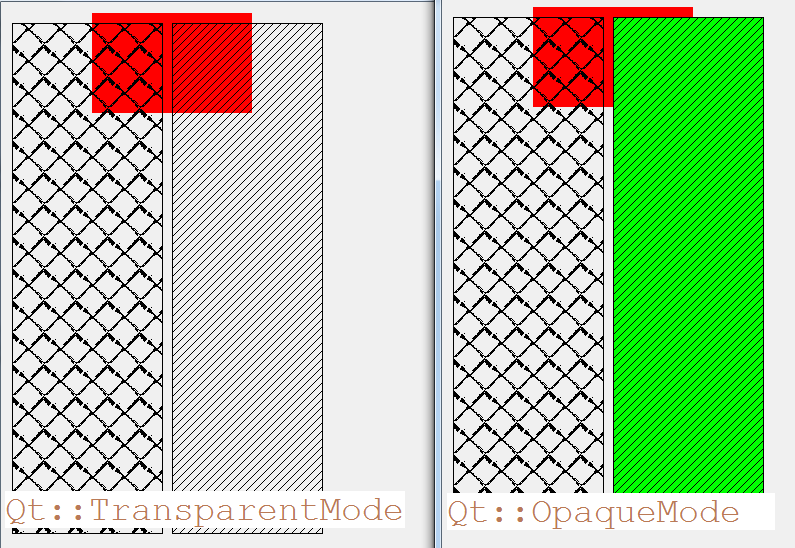

When I use a bitmap as a texture pattern, the background is not correctly displayed. When you use a build-in pattern, this is done correctly.

Here is some code to reproduce the problem:

Example

QBitmap bitmap("debug/test.png");
QBrush brushBitmap(bitmap);
QRect rect(80,0,160,100);
QRect rect1(0,10,150,510);
QRect rect2(160,10,150,510);

painter.setBackgroundMode(  Qt::OpaqueMode );  // Qt::OpaqueMode / Qt::TransparentMode
painter.setBackground(QColor(0,255,0)); // Background set to green
painter.setPen(QPen(Qt::black, 1, Qt::SolidLine));

painter.fillRect(rect,QBrush(Qt::red));

painter.setBrush( brushBitmap );
painter.drawRect(rect1);

painter.setBrush(QBrush(Qt::black, Qt::BDiagPattern));
painter.drawRect(rect2);

I think the bug is located in the $QTDIR\src\gui\painting\qemulationpaintengine.cpp: 83

Bug

void QEmulationPaintEngine::fill(const QVectorPath &path, const QBrush &brush)
{
    QPainterState *s = state();

    if (s->bgMode == Qt::OpaqueMode) {
        Qt::BrushStyle style = brush.style();
        if (style >= Qt::Dense1Pattern && style <= Qt::DiagCrossPattern)
            real_engine->fill(path, s->bgBrush);
    }
....
}

should be

BugFIX

void QEmulationPaintEngine::fill(const QVectorPath &path, const QBrush &brush)
{
    QPainterState *s = state();

    if (s->bgMode == Qt::OpaqueMode) {
        Qt::BrushStyle style = brush.style();
        if ((style >= Qt::Dense1Pattern && style <= Qt::DiagCrossPattern) ||  (style == Qt::TexturePattern ))
            real_engine->fill(path, s->bgBrush);
    }
....
}

I'm Not experienced enough to know if this is the only change needed to solve the problem. But it solved my case.
