Description
Code
// MyWidget.ui.qml import QtQuick import QtQuick.Controls.Basic Item { width: 200 height: 100 property alias myRectangle: myRectangle property alias myButton: myButton property alias myItem: myItem Rectangle { id: myRectangle color: "green" property string description: "A Rectangle" } Button { id: myButton checkable: true property string description: "A Button" } Item { id: myItem property string description: "An Item" } }
// MyScreen.ui.qml import QtQuick Rectangle { width: 640 height: 480 MyWidget { id: widget } }
Property editor capabilities (QtDS 4.2.0)

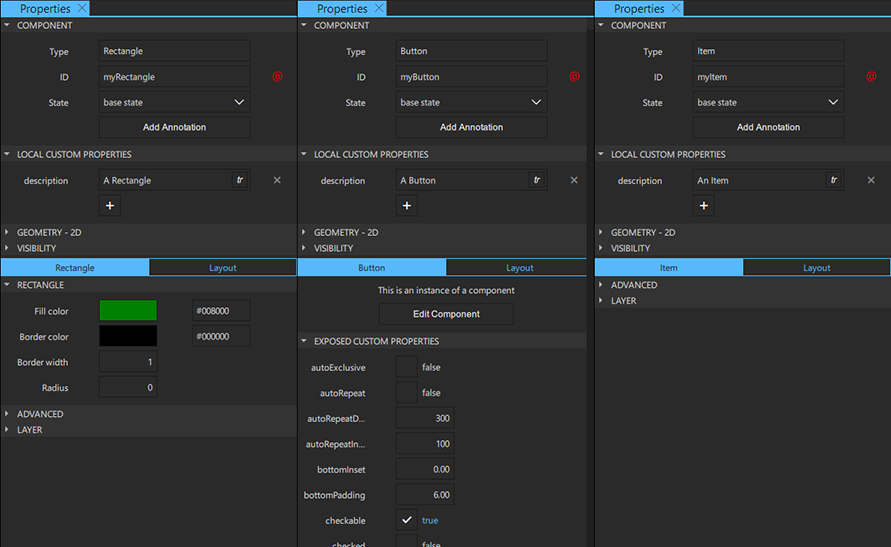

Editor when MyWidget.ui.qml is active:

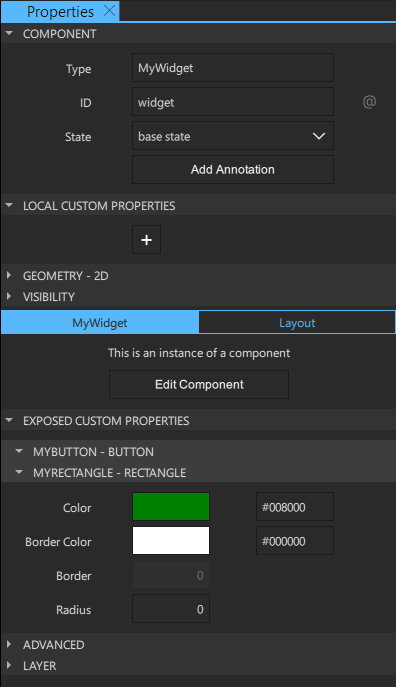

Editor when MyScreen.ui.qml is active:
Suggestions
Reference point: When MyScreen.ui.qml is active, the property editor lets us edit widget.myRectangle.color and other "built-in" Rectangle properties under "Exposed Custom Properties". That's good.
I suggest that this capability be extended so that we can similarly edit:
- Properties that are user-defined (widget.myRectangle.description, widget.myButton.description, and widget.myItem.description)
- Properties that are not user-defined but are still considered "custom" by the Properties View (widget.myButton.checkable et al.)
Attachments
Issue Links
- relates to
-
QTCREATORBUG-12100 Custom properties of components in QML Designer
-
- Closed
-
