[Figma Bridge] Variants: Changes in Z-order are not captured

    XMLWordPrintable

Details

    • Bug
    • Resolution: Unresolved
    • Not Evaluated
    • None
    • QDS 4.7.1
    • Qt-Bridge-Figma
    • None
    • Windows 1022H2, Figma 125.3.6

    Description

      In the attached project, the 2 variants contain elements that are identical in every way except for their Z-order. When converted to QML, Z-orders in the Alt variant are lost.

      Figma



      Qt Design Studio



      In the code below, we expect something like PropertyChanges { target: redSquare; z: 1} in "pattern_Alt":

      import QtQuick
      import QtQuick.Controls

      Rectangle {
          id: myPattern
          state: "pattern_Default""
          // ...

          Rectangle {
              id: redSquare
              // ...
          }

          Rectangle {
              id: greenSquare
              // ...
          }
          states: [
              State {
                  name: "pattern_Alt"
              },
              State {
                  name: "pattern_Default"
              }
          ]
      }


      Attachments

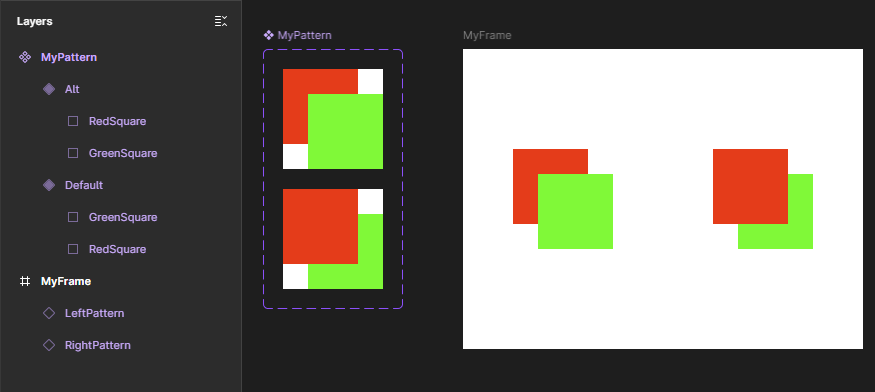

        1. figma-z_order-different.png
          22 kB

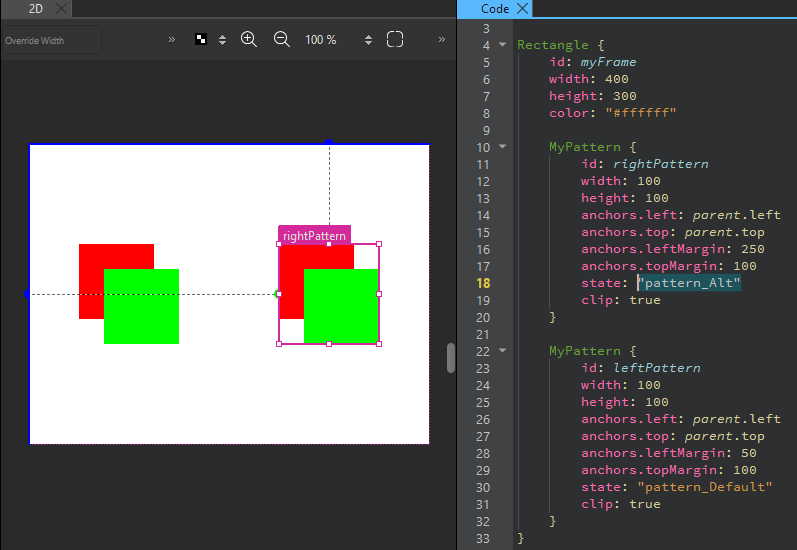

        2. qds-z_order-same.png
          45 kB
        3. ZOrderVariant.fig
          27 kB
        4. zOrderVariant.qtbridge
          6 kB
