SVG generated are not matching Figma vectors

    XMLWordPrintable

Details

    • Bug
    • Resolution: Unresolved
    • Not Evaluated
    • None
    • QDS 4.7.1
    • Qt Bridge Importer
    • None
    • Windows

    Description

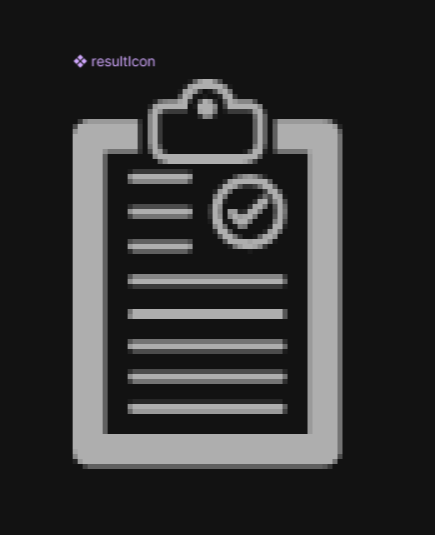

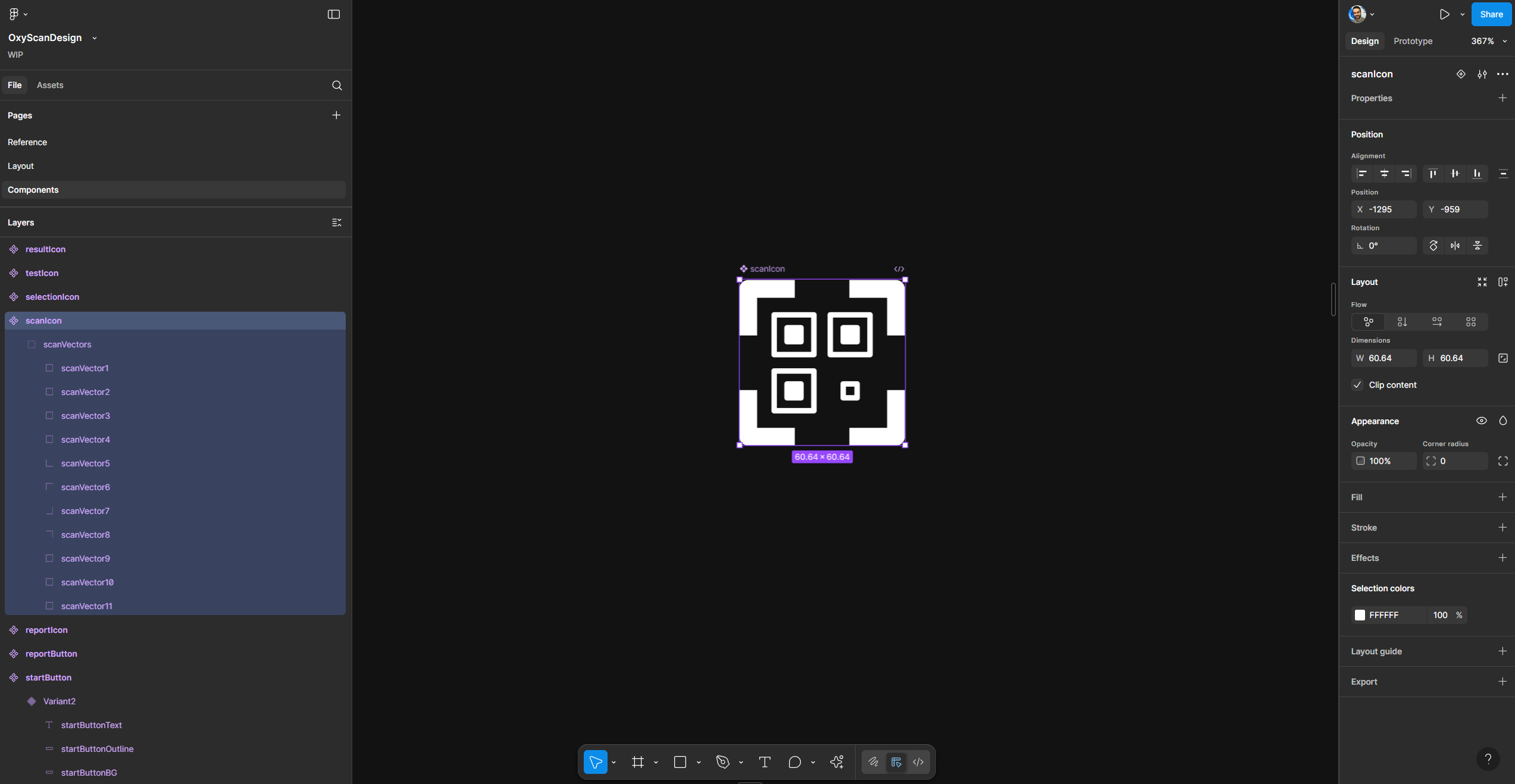

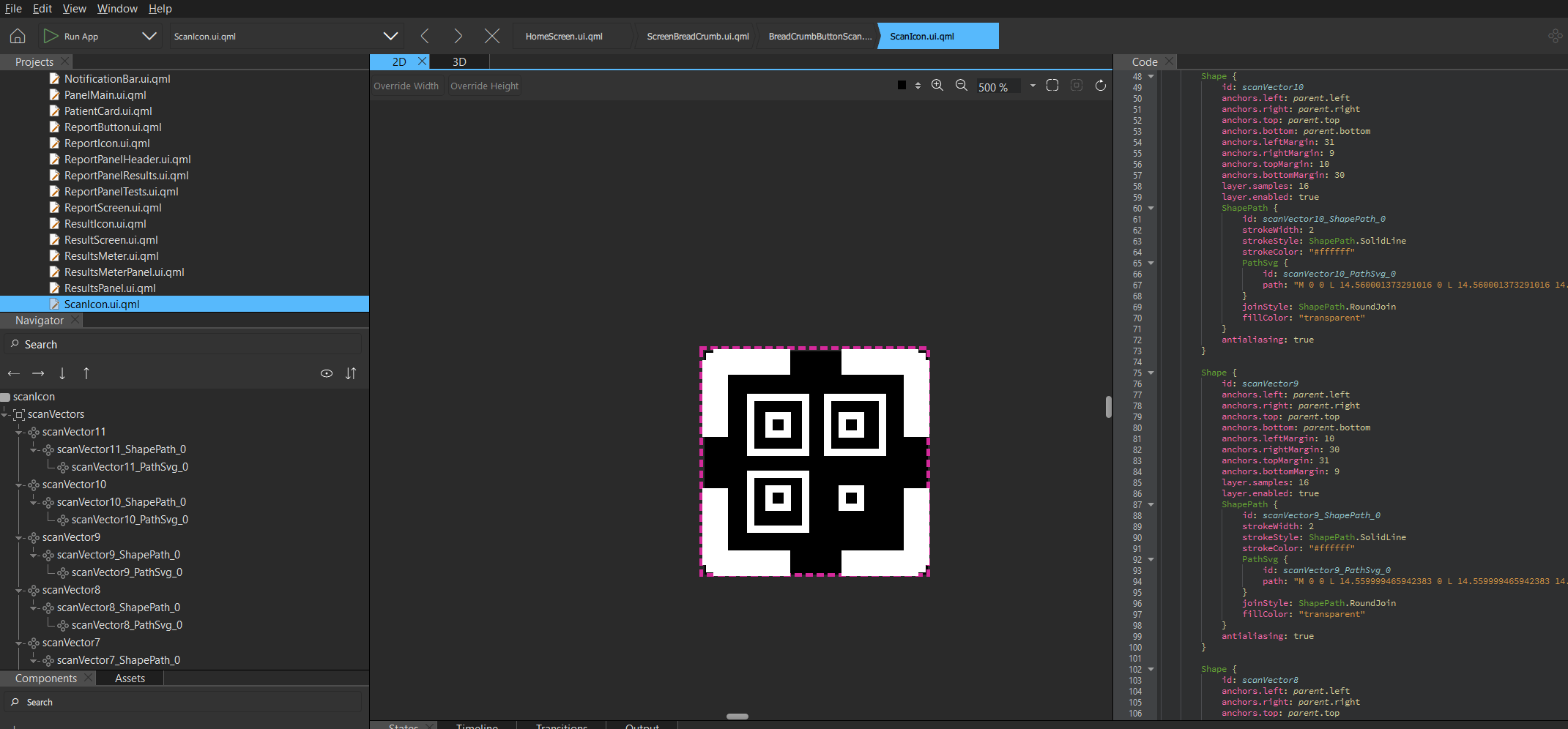

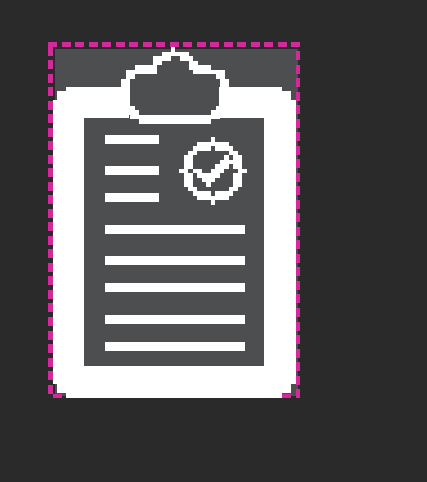

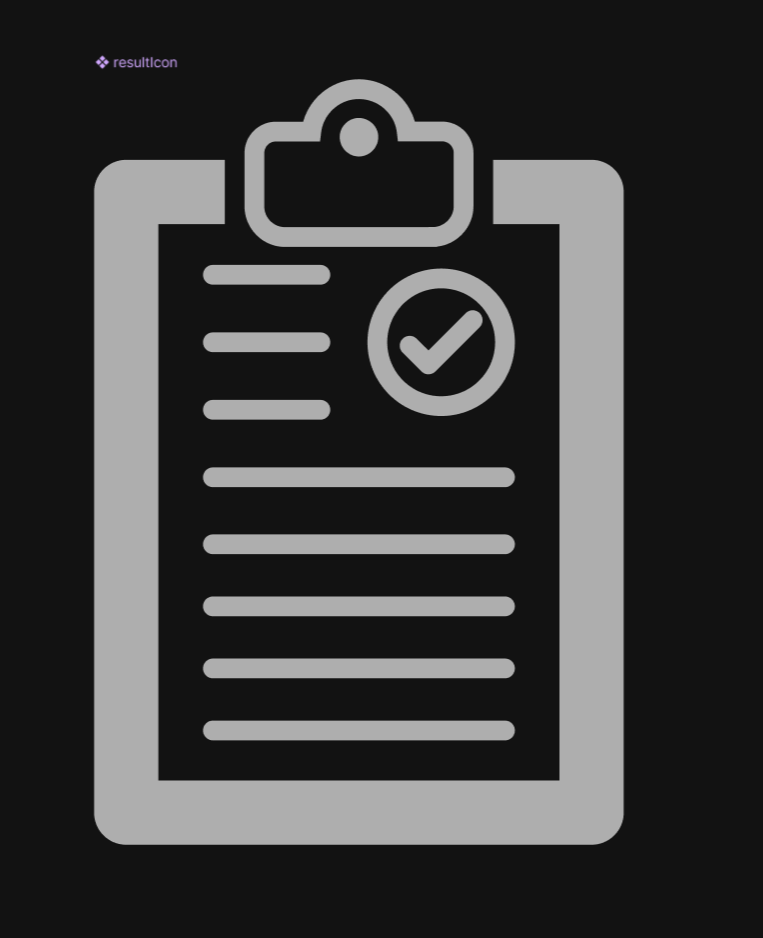

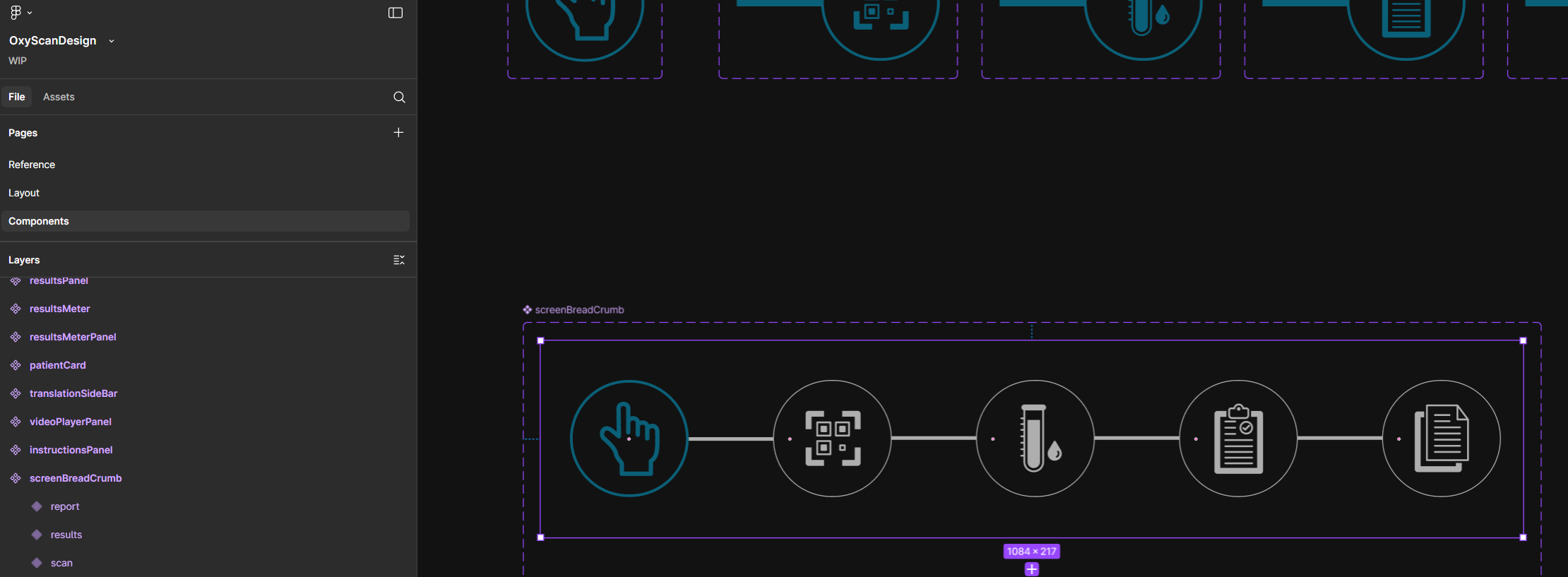

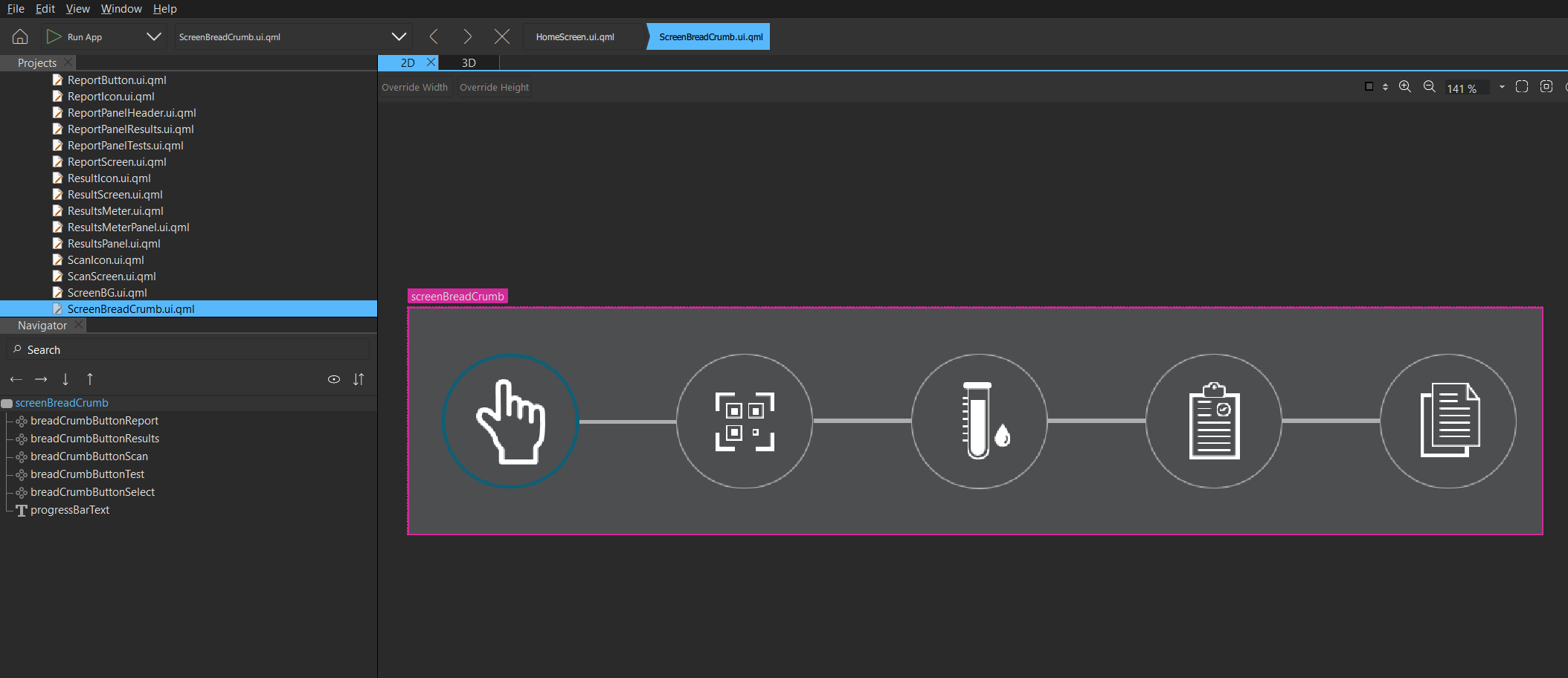

      SVG components generated from the Bridge are not matching the vectors that were created in Figma. Attached are screenshots showing what they look like in Figma and what is getting generated in DS.



      ui.qml for one of the vectors is attached.
