Qt DS 3.2.0 unable to import exported Figma project due to "unsupported file format"

    XMLWordPrintable

Details

    • Bug
    • Resolution: Duplicate
    • Not Evaluated
    • None
    • QDS 3.1, QDS 3.2
    • None
    • Windows

    Description

      Essentially a duplicate of https://bugreports.qt.io/browse/QDS-6164?jql=project%20%3D%20QDS%20AND%20text%20~%20%22unsupported%20file%22

      I have a valid DS Enterprise license, yet still see the "Unsupported file format" error when attempting to pull in the Figma-bridge generated ".qtbridge" file. I have attempted to import it into the form editor by selecting both the "+" in the Assets tab, as well as drag & drop. I have also extracted the file and attempted the import with the .metadata file, but experience the same issue.

      I should note that this is intended to be opened as part of an empty MCU DS project, but I have attempted it also with a "General" empty project.

      Troubleshooting steps taken:

      • Uninstall/Reinstall Qt DS v3.1.0 and v3.2.0
      • Ensure "AssetImporterPlugin.dll" exists at C:\Qt\Tools\QtDesignStudio\lib\qtcreator\plugins\qmldesigner\AssetImporterPlugin.dll
      • Uninstall/Reinstall Qt Bridge for Figma using the manifest file in the QtDesignStudio figma_bridge directory and re-generate file



      Attached I've included images of the error-states as well as a copy of both the figma project and the exported .qtbridge file.

      Attachments

        1. image-2022-03-30-10-09-40-937.png
          53 kB
        2. LightsPanelDesign.fig
          1.77 MB
        3. LightsPanelDesign-2022-03-30-14.6.9_UTC.qtbridge
          544 kB

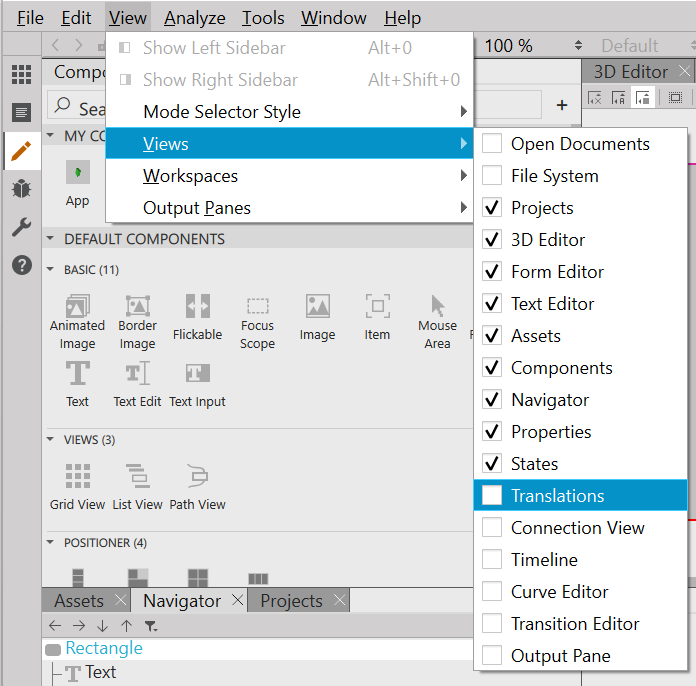

        4. screenshot-1.png
