Texture with alpha not rendering as expected on complex meshes

    XMLWordPrintable

Details

    • Windows
    • bc4a0aa611242083403fd11f791f51cbab8d4f3a

    Description

      Observed when using full opaque png texture:

      • Standard QT cube is rendered as expected
      • Imported simple mesh (cube) is rendered as expected
      • Imported complex mesh (car model with wheels) is rendered as expected

      Observed when using semi opaque png texture:

      • Standard QT cube is rendered as expected
      • Imported simple mesh (cube) is rendered as expected
      • Imported complex mesh (car model with wheels) is not rendered as expected



      Notes:

      • Only the black area around the text "working" should be transparent
      • Same mesh and texture are working in other real time editors like Blender

      Attachments

        1. opaque.PNG
          95 kB
        2. QT3D_textureIssue.zip
          441 kB

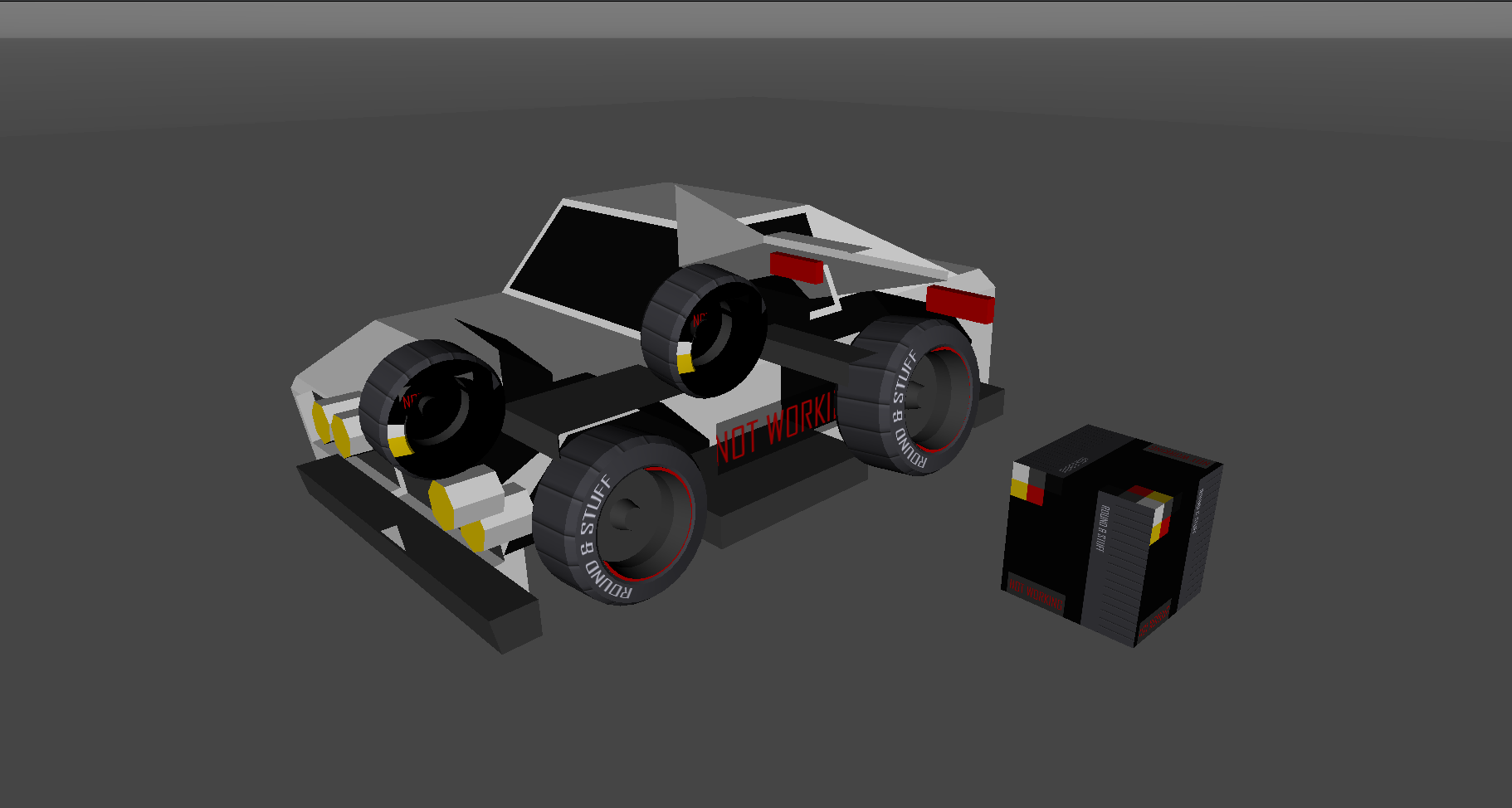

        3. semi_opaque.PNG
          117 kB
