QtQuick3D - problem with object picking when node with QtQuick 2D component is inside 3D view

    XMLWordPrintable

Details

    • Bug
    • Resolution: Fixed
    • P2: Important
    • None
    • 6.4.0 Beta2
    • Quick: 3D
    • None
    • (Qt for Python)
      Qt 6.4
      PySide 6.3.1
      Windows 10 64bit

      PC: Ryzen 5 4600H, GTX 1650Ti, 16GB DDR4
    • Windows
    • 2022 Qt Quick 3D: Week 49

    Description

      I would like to use 2D elements (i.e. Text or Rectangle) in a 3D view. Unfortunately, there is a problem with them. When the rotation of the Text matches the user's camera (rotation: userCamera.rotation), so that it is always visible to the user, object picking does not work, or only works in undefined camera positions. When I turn off the visibility of the Text, selecting objects works fine.



      EXAMPLE:

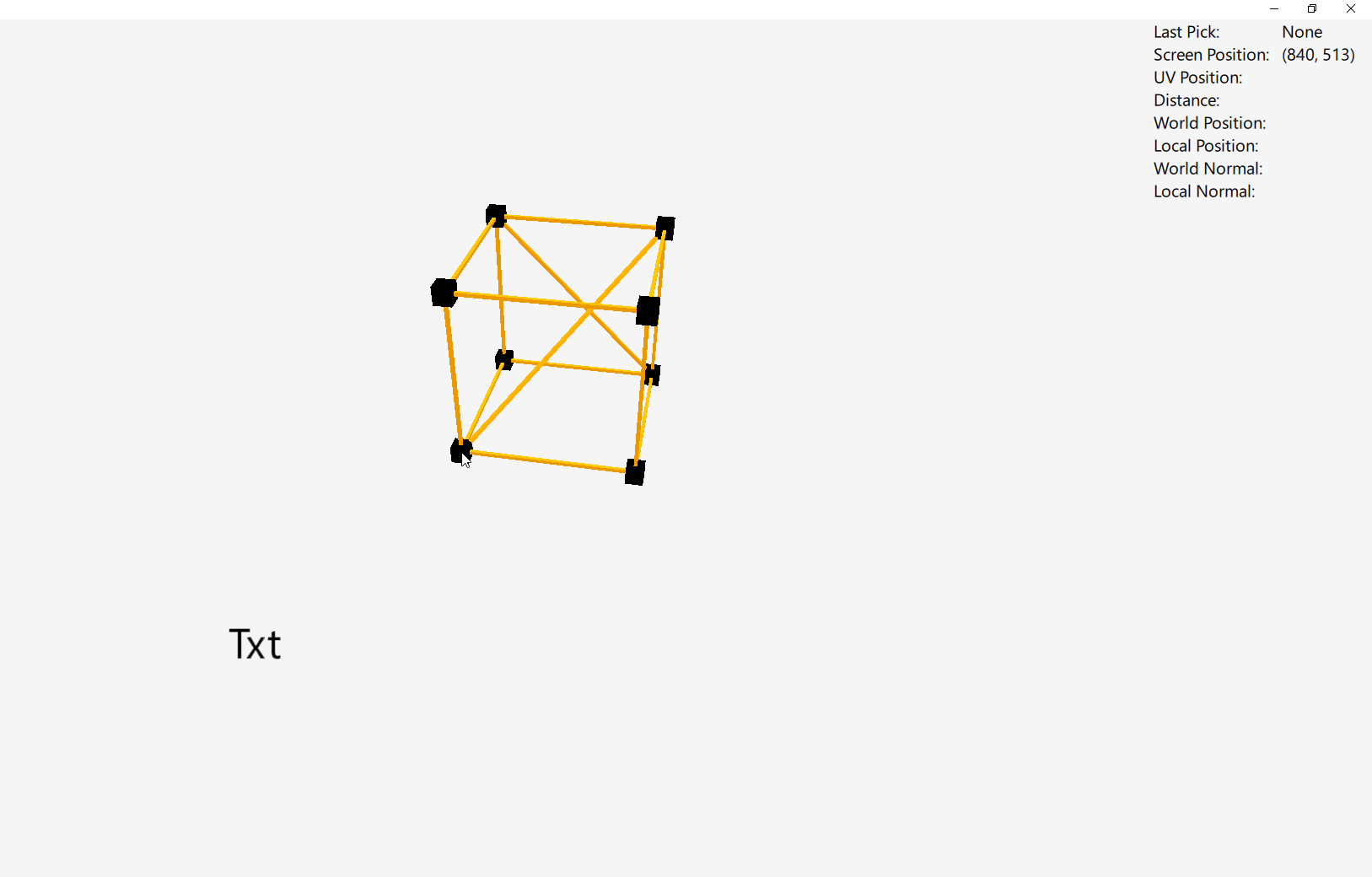

      Now I can't pick lines / points (change their color):





      When I turn off the visibility of the text, there is no problem with this:





      But for example, in this camera position and text turned ON, object selection also works:





      Code:

      Cube points:

      Repeater3D {
          id: repPktCube
          model: [[400, 0, 0], [500, 0, 0], [400, 100, 0], [500, 100, 0], [400, 0, 100], [500, 0, 100], [400, 100, 100], [500, 100, 100]]
          Model {
              id: modelPktCube
              visible: cbPts.checked
              source: "#Cube"
              objectName: "Cube"
              scale: Qt.vector3d(0.1, 0.1, 0.1)
              position: Qt.vector3d(repPktCube.model[index][0], repPktCube.model[index][1], repPktCube.model[index][2])
              materials: DefaultMaterial {
                  diffuseColor: modelPktCube.isPicked ? "violet" : "black"
              }
              pickable: true
              property bool isPicked: false
          }
      }

      2D Text that rotates to user:

      Node {
          position: Qt.vector3d(200, 100, 0)
          rotation: userCamera.rotation
          Text {
              text: 'Txt'
              visible: cbTxt.checked
          }
      }


      Picking is copied from Picking example https://doc.qt.io/qt-6/qtquick3d-picking-example.html
