Popup isn't positioned as expected in certain circumstances

    XMLWordPrintable

Details

    Description

      A minimal example:

      import QtQuick
      import QtQuick.Controls.Basic

      Window {
          width: 640
          height: 480
          visible: true

          Item {
              id: root
              objectName: "CustomCombobox"
              x: 10
              y: 300
              width: 200
              height: 20

              ComboBox{
                  id:control
                  anchors.fill: parent
                  model: 100

                  popup: Popup {
                      id: popupList
                      x: 0
                      y: control.height
                      implicitWidth: 200
                      implicitHeight: contentItem.implicitHeight
                      contentItem: ListView {
                          id:listItems
                          implicitHeight: contentHeight
                          clip: true
                          interactive: true
                          model: control.popup.visible ? control.delegateModel : null
                          currentIndex: control.highlightedIndex
                      }
                  }
              }
          }
      }

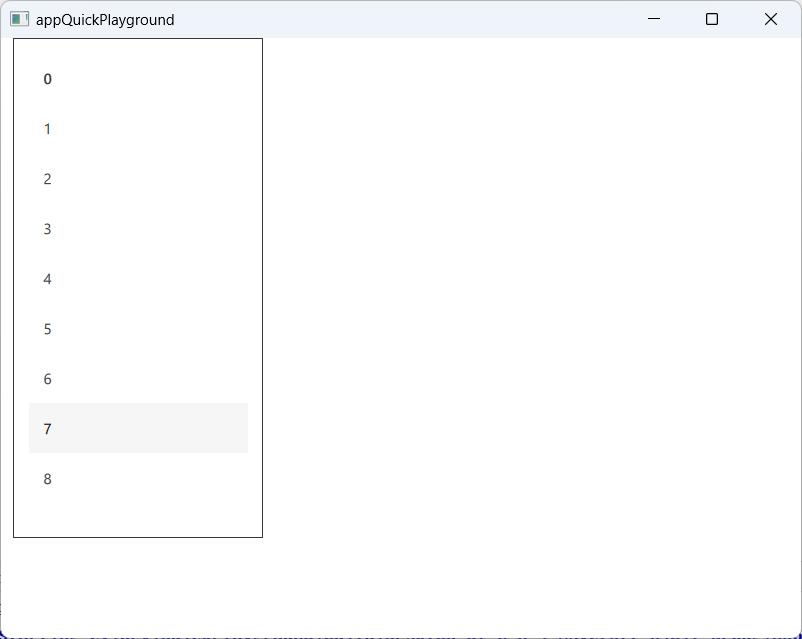

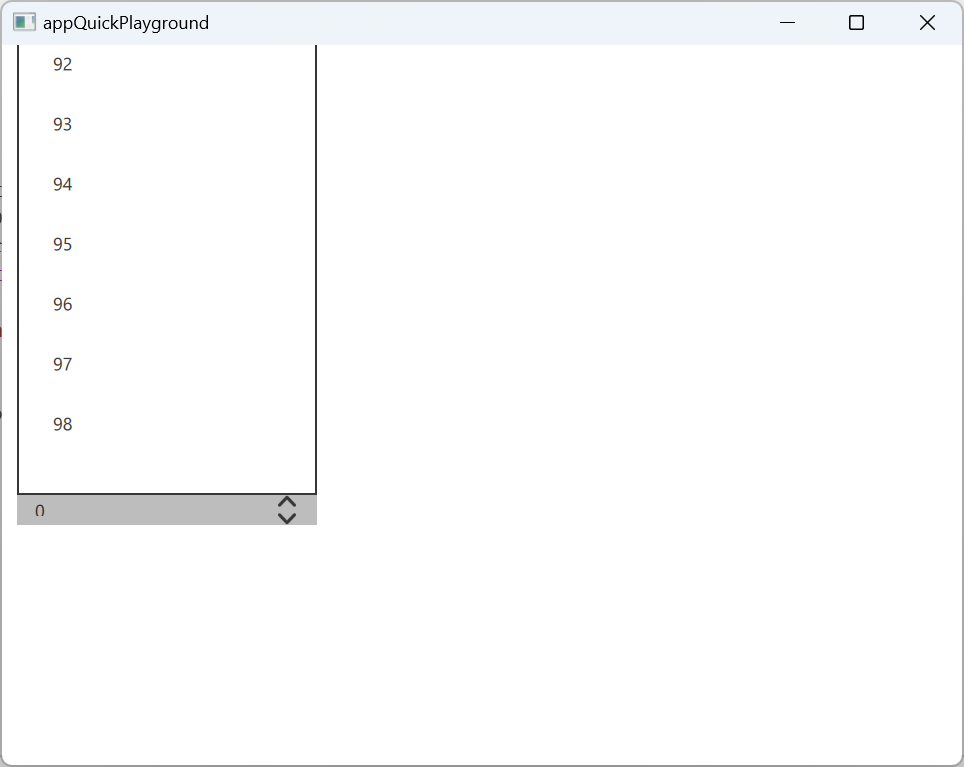

      That works as expected when there are 100 entries in model, that Popup pops out on top /from the bottom of ComboBox (depending on whether there are more space on top or bottom). But when there are only 10 entries, i.e. model: 10, then ComboBox is totally covered up by its Popup, which is an undesired behavior.

      The current workaround is to explicitly set a height or implicitHeight for Popup.

      It is speculated that popup positioner is doing some optimizations internally. But the result can be unexpected.
