Window{} visibility does not work properly with CMake command QT_ANDROID_TARGET_SDK_VERSION 35

    XMLWordPrintable

Details

    • Bug
    • Resolution: Done
    • P1: Critical
    • None
    • 6.8.3, 6.9.0
    • None
    • Android
    • 2025wk22s1-2QtforAndroid

    Description

      following code works fine for QT_ANDROID_TARGET_SDK_VERSION 34, but for 35 it hides and paints under Android statusbar and navigation bar

      Window {
          id: root
          visible: true
          visibility: Window.Maximized

          color: "red"
      }



      and for the CMake:

      set_target_properties(${TARGET_NAME} PROPERTIES
          QT_ANDROID_TARGET_SDK_VERSION 34          # this works fine, but change it to 35 and it produces issue
      )

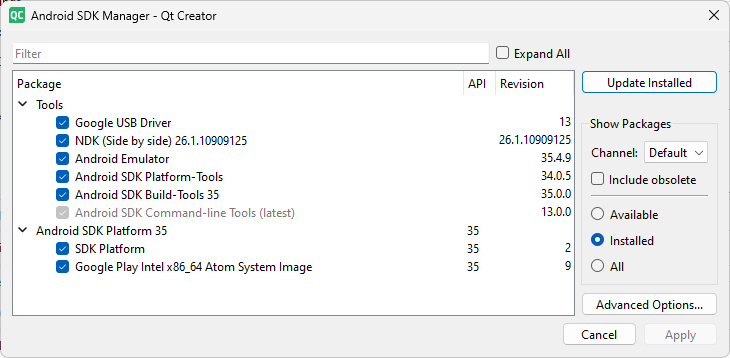

      my setup:



      I tried to install and build SDK 34 but it makes no difference,

      so the issue appears no matter which SDK i use for build, but if I set the CMake command QT_ANDROID_TARGET_SDK_VERSION to 35 then the issue is produced.

      I didnt try different NDKs tho.



      PS: I think that this issue realy appears ONLY on deviced with android 15, unfortunately i dont have real android 14 device to try and cant install the emulator... but i realy think it works fine when run the app on android 14 device/simulator... so unfortunately i cant test and prove



      UPDATE:

      attached minimal example... with setting QT_ANDROID_TARGET_SDK_VERSION as 34 it properly builds:

      as you can see, Window{} with color: "red" with visibility: Window.Maximized is properly filled (starts under the android system statusbar, and ends on the top edge of android system navigationbar).

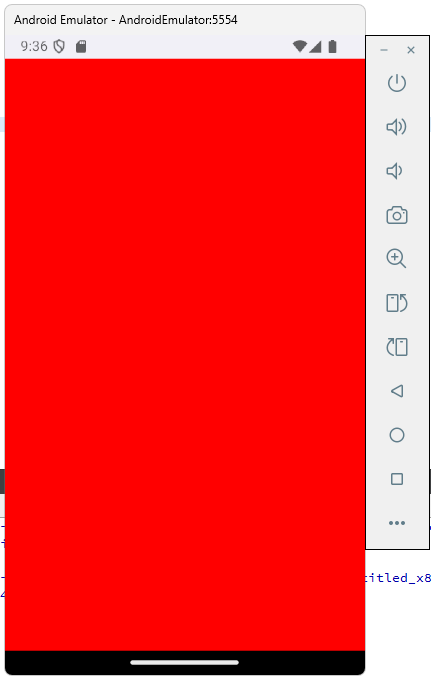

      however, if I only change the QT_ANDROID_TARGET_SDK_VERSION to 35 and build again:

      then all red Window is filled behind of statusbar and navigationbar...



      perhaps this is some android change in api 35 on purpose which were not documented?

       - even if it is, for 6.8 (and because SafeArea have bugs in 6.9.0 so in 6.9.0 also) i dont know about any way how to force Window to be filled like in first case if I decide to use QT_ANDROID_TARGET_SDK_VERSION with value 35
