Crash on D3D11 swapChain when using WA_NativeWindow on QWebEngineView hosted in a QDockWidget

    XMLWordPrintable

Details

    • Bug
    • Resolution: Unresolved
    • P1: Critical
    • None
    • 6.8.3
    • None
    • Windows

    Description

      In the code sample below there are two webview hosted in dockwidgets, one is docked by default and the other is floating.
      Note that both webviews have the WA_NativeWindow flag set, so the the QMainWindow can stay on raster surface, not changing surface type.

      Observations on WebView 1 initially docked:

      • Docked it resizes and renders properly
      • Undocked the webengine view is not rendering anymore

      Observations on WebView 2 initially floating:

      • Undocked/floating it resizes and renders properly

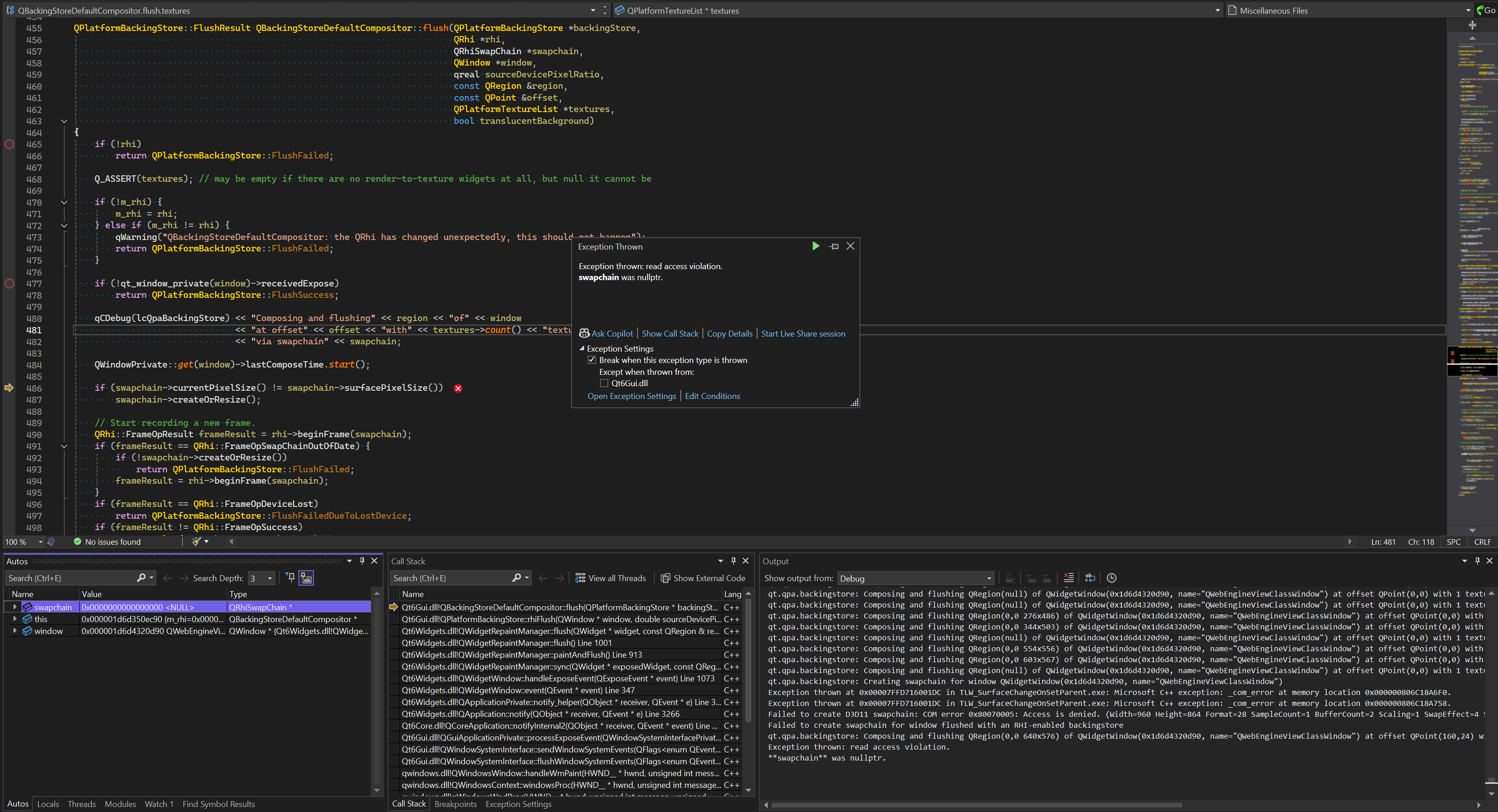

      • When docking back, e.g. into the right docking area, it crashes on the D3D11 swapChain being null, see attached screenshot


      Repo code sample:

      #include <QtWidgets/QApplication>
      #include <QtWidgets/QtWidgets>
      #include <QWebEngineView>

      class CenterWidget : public QWidget
      {
      public:
      	CenterWidget(QWidget* parent = nullptr)
      		: QWidget(parent) {}

      	void paintEvent(QPaintEvent *event)
      	{
      		 QPainter painter(this);
      		 painter.setPen(Qt::white);
      		 QRect _rect = rect();
      		 painter.fillRect(_rect, QColor(100,100,100));
      		 if (auto win = parentWidget()->windowHandle())
      		 {
      			 QString surfaceStr("Unhandled");
      			 switch (win->surfaceType())
      			 {
      			 case QWindow::RasterSurface:
      				 surfaceStr = "Raster";
      				 break;
      			 case QWindow::Direct3DSurface:
      				 surfaceStr = "Direct3D";
      				 break;
      			 case QWindow::OpenGLSurface:
      				 surfaceStr = "OpenGL";
      				 break;
      			 }
      			 painter.drawText(_rect, "Surface Type: " + surfaceStr, QTextOption(Qt::AlignCenter));
      		 }
      	}
      };

      int main(int argc, char* argv[])
      {
      	QApplication::setAttribute(Qt::AA_DontCreateNativeWidgetSiblings);
      	QApplication app(argc, argv);
      	app.setQuitOnLastWindowClosed(true);

      	// Create Top Level MainWindow
      	auto mainWindow = new QMainWindow();
      	mainWindow->setAttribute(Qt::WA_DeleteOnClose);
      	mainWindow->setWindowTitle(QString("WebView Bugs - Qt%1.%2.%3").arg(QT_VERSION_MAJOR).arg(QT_VERSION_MINOR).arg(QT_VERSION_PATCH));
      	mainWindow->setCentralWidget(new CenterWidget(mainWindow));
      	mainWindow->resize(800, 600);
      	mainWindow->show();

      	// Create WebView 1 - Initially docked in the QMainWindow -> un-dock will not render WebView anymore
      	auto webView1 = new QWebEngineView();
      	webView1->load(QUrl("https://qt-project.org/"));
      	webView1->setAttribute(Qt::WA_NativeWindow); // For keeping raster surface on mainWindow

      	auto dockWidget1 = new QDockWidget("WebView 1", mainWindow);
      	dockWidget1->setAllowedAreas(Qt::AllDockWidgetAreas);
      	mainWindow->addDockWidget(Qt::LeftDockWidgetArea, dockWidget1);
      	dockWidget1->setWidget(webView1);

      	// Create WebView 2 - Initially floating on top of the QMainWindow -> re-dock will crash on swapChain
      	auto webView2 = new QWebEngineView();
      	webView2->load(QUrl("https://qt-project.org/"));
      	webView2->setAttribute(Qt::WA_NativeWindow); // For keeping raster surface on mainWindow

      	auto dockWidget2 = new QDockWidget("WebView 2", mainWindow);
      	dockWidget2->setAllowedAreas(Qt::AllDockWidgetAreas);
      	mainWindow->addDockWidget(Qt::RightDockWidgetArea, dockWidget2);
      	dockWidget2->setWidget(webView2);
      	dockWidget2->setFloating(true);

      	// Run Qt message loop
      	return app.exec();
      }
