Details
-
Bug
-
Resolution: Unresolved
-
P3: Somewhat important
-
None
-
6.8.1
-
None
Description
Having
cm_grad.svg
<svg width="40mm" height="40mm" version="1.1" viewBox="0 0 40 40" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"> <defs> <linearGradient id="a" x2="40" y1="20" y2="20" gradientUnits="userSpaceOnUse"> <stop stop-color="#00ddf2" offset="0"/> <stop stop-color="#ff1be8" stop-opacity=".2" offset="1"/> </linearGradient> </defs> <rect width="40" height="40" fill="url(#a)"/> </svg>
bw_grad.svg
<svg width="40mm" height="40mm" version="1.1" viewBox="0 0 40 40" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"> <defs> <linearGradient id="a" x2="40" y1="20" y2="20" gradientUnits="userSpaceOnUse"> <stop offset="0"/> <stop stop-opacity=".3" offset="1"/> </linearGradient> </defs> <rect width="40" height="40" fill="url(#a)"/> </svg>
The following code creates a PDF, but the SVGs' opacitbw_grad.svg
y gradient is not respected:
pdf_writer = QPdfWriter('output.pdf') pdf_writer.setPageSize(QPageSize(QPageSize.PageSizeId.A4)) painter = QPainter() painter.begin(pdf_writer) svg_renderer1 = QSvgRenderer('bw_grad.svg') svg_renderer2 = QSvgRenderer('cm_grad.svg') svg_renderer1.render(painter, QRectF(500, 500, 2500, 2500)) svg_renderer2.render(painter, QRectF(1500, 1500, 2500, 2500)) painter.end()

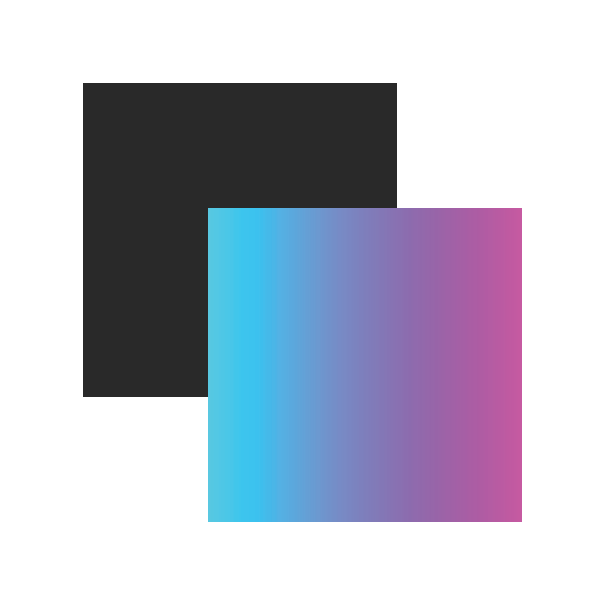

How it is rendered:

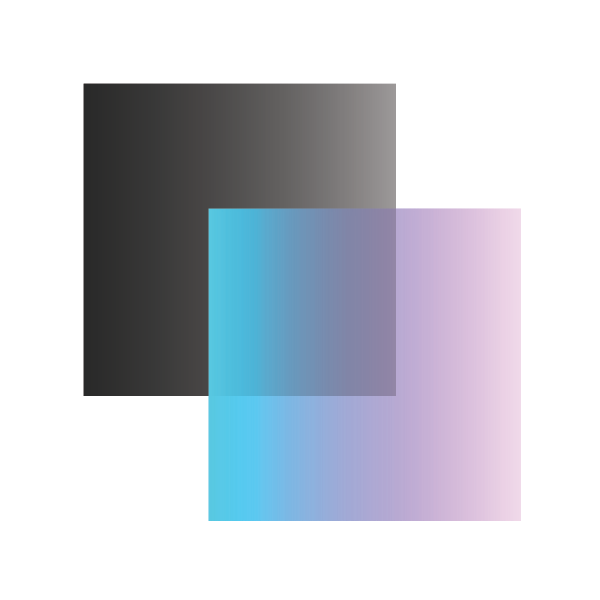

How it should be rendered:
