QAxWidget shown off-screen with SystemAware-DPI

    XMLWordPrintable

    Details

    • Type: Bug
    • Status: Closed
    • Priority: P4: Low
    • Resolution: Done
    • Affects Version/s: 5.6.0
    • Fix Version/s: 5.6.2
    • Component/s: ActiveX Support
    • Labels:
      None
    • Commits:
      65cdffeaeadfc52fe0d1f2a73f82b698327a3b27 (qtbase.5.6, 26.7.2016, 5.6.2)

      Description

      On Windows 8.1 or 10, in a certain situation, a QAxWidget is not drawn at the correct coordinate in a multi-monitor, multi-dpi setup. This bug is dependent on many conditions (see below).

      All these conditions must exist for the bug to appear:

      • The primary monitor is set at a DPI of 150% or more
      • The secondary monitor is set at 100%
      • The mouse pointer is on the secondary monitor when QAxWidget is first shown
      • The application manifest specify </dpiAware>true</dpiAware>
        this mean "High DPI Aware" (== System Aware) but not "Per Monitor High DPI Aware"
      • The "QT_AUTO_SCREEN_SCALE_FACTOR" environment variable is set to "1"

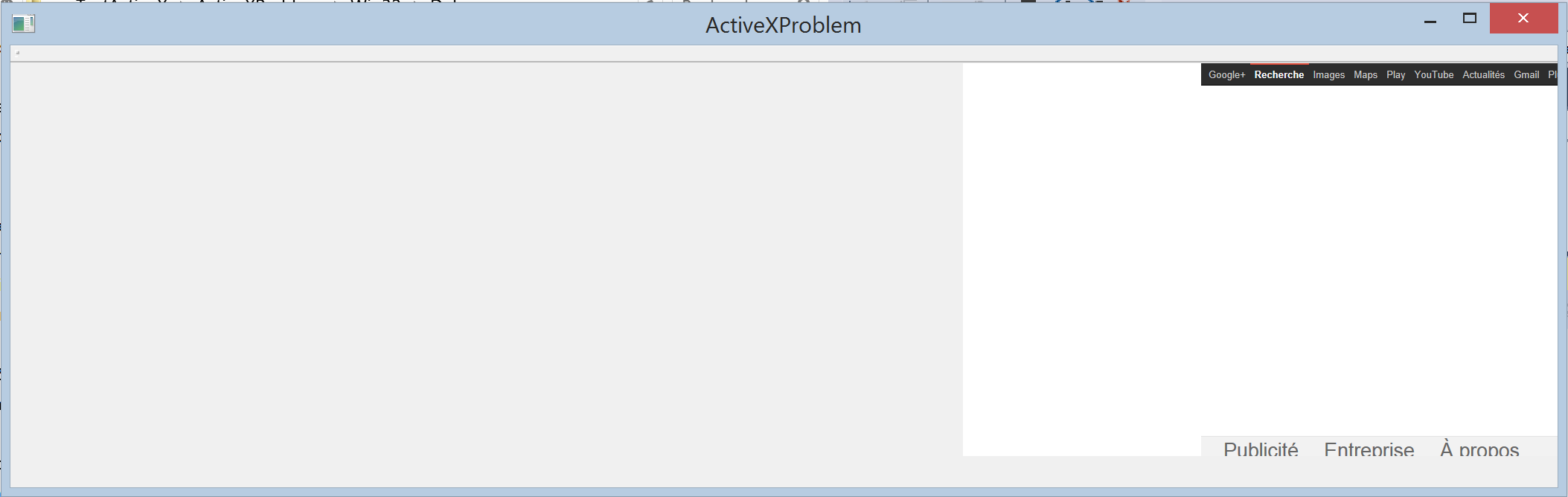

      We attached a simple project to reproduce the bug and a screenshot of the result.

        Attachments

        1. ActiveXProblem.zip
          6 kB
        2. qtbug54420_diag.diff
          8 kB
        3. qtbug54420.zip
          2 kB
        4. Screenshoot.PNG
          22 kB
