QLineSeries are not rendered correctly with OpenGL

    XMLWordPrintable

Details

    • Bug
    • Resolution: Duplicate
    • P3: Somewhat important
    • 5.12.0 Alpha
    • 5.9.1
    • Charts
    • None
    • Windows 7 64-bit, MSVC2015 64-bit, tested with Nvidia and Intel GPUs.

    Description

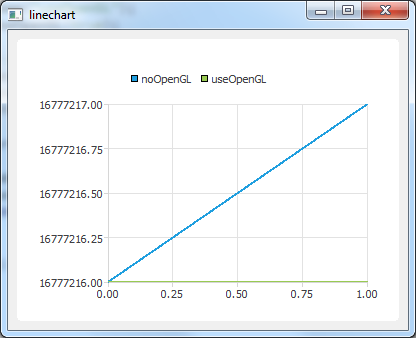

      Please see the screenshot attached. If series contains Y-values near the 24-bit boundary and OpenGL is enabled, the series are not rendered correctly. The issue can be reproduced at least with the following values: 16777216, 16777217 and 16777.216, 16777.217.

      #include <QtWidgets/QApplication>
      #include <QtWidgets/QMainWindow>
      #include <QtCharts/QChartView>
      #include <QtCharts/QLineSeries>

      QT_CHARTS_USE_NAMESPACE

      int main(int argc, char *argv[])
      {
          QApplication a(argc, argv);

          QLineSeries *noOpenGL = new QLineSeries();
          noOpenGL->append(0, 16777216);
          noOpenGL->append(1, 16777217);
          noOpenGL->setName("noOpenGL");

          QLineSeries *useOpenGL = new QLineSeries();
          useOpenGL->append(0, 16777216);
          useOpenGL->append(1, 16777217);
          useOpenGL->setName("useOpenGL");
          useOpenGL->setUseOpenGL(true);

          QChart *chart = new QChart();
          chart->addSeries(noOpenGL);
          chart->addSeries(useOpenGL);
          chart->createDefaultAxes();

          QChartView *chartView = new QChartView(chart);

          QMainWindow window;
          window.setCentralWidget(chartView);
          window.resize(400, 300);
          window.show();

          return a.exec();
      }
