[REG 5.15.2->6.2] DelegateChooser not finding choice

XMLWordPrintable

    • macOS
    • d00c76171de0c76794eb70a7284326332c0b3c66 (qt/qtdeclarative/dev) 159dfd19a742276a1f8f610d46a2a3e2ed3d99f6 (qt/qtdeclarative/6.2)

      DelegateChooser doesn't find the role choice. This problem happens in Qt6.x (tested in Qt6.2) but the same code works in Qt5.15.2.

      I tried to make a simple example to show the issue, but it happens only in combination with some specific elements (Q_ENUM_NS, QQmlListProperty, so on). Depending on what you change, the problem stops happening.

      Here is some code snippets of what is involved to reproduce. (Or check the full project attached).

      Main.qml

      import QtQuick 2.15
      import QtQuick.Controls 2.15
      import QtQuick.Layouts 1.15
      import QtQuick.Window  2.15

      import Qt.labs.qmlmodels 1.0
      import test.chooser 1.0

      ApplicationWindow {
          width: 600
          height: 400

          visible: true

          ColumnLayout
          {
            anchors.centerIn: parent

            width: 200
            height: 200

            Repeater {
              model: Items.all

              DelegateChooser {
                role: "type"

                DelegateChoice {
                  roleValue: EnumNamespace.LABEL_TYPE

                  Text {
                    text: modelData.name
                    font.pixelSize: 20
                    horizontalAlignment: Text.AlignHCenter
                  }
                }

                DelegateChoice {
                  roleValue: EnumNamespace.FIELD_TYPE

                  TextField {
                    placeholderText: modelData.name
                    font.pixelSize: 20
                    horizontalAlignment: Text.AlignHCenter
                  }

                }
              }
            }
          }
      }



      Items.hpp

      ...
      namespace EnumNamespace
      {
      Q_NAMESPACE enum ItemType
      {
        LABEL_TYPE = 0,
        FIELD_TYPE = 1
      };
      Q_ENUM_NS(ItemType)
      }

      class Item : public QObject {
          Q_OBJECT

          Q_PROPERTY(EnumNamespace::ItemType type MEMBER mType CONSTANT)
          Q_PROPERTY(QString name MEMBER mName CONSTANT)

      public:
          Item (EnumNamespace::ItemType _type, QString _name) : mType(_type), mName(_name) {}
          Item (const Item& other) : mType(other.mType), mName(other.mName) {}

          EnumNamespace::ItemType mType;
          QString mName;
      };

      class Items : public QObject {
          Q_OBJECT

          Q_PROPERTY(QQmlListProperty<Item> all READ getAll CONSTANT)

      // This is only difference of the code depending on the Qt version as the QQmlListProperty API was changed in Qt6.x
      #if QT_VERSION < QT_VERSION_CHECK(6, 0, 0)
          using size_type = int;
      #else
          using size_type = qsizetype;
      #endif

      public:
          Items() {
              data.emplace_back(EnumNamespace::LABEL_TYPE, "Label 1");
              data.emplace_back(EnumNamespace::LABEL_TYPE, "Label 2");
              data.emplace_back(EnumNamespace::FIELD_TYPE, "Edit here...");
          }

      private:
          QQmlListProperty<Item> getAll() {
              return QQmlListProperty<Item>(
                  this, this,
                  [](QQmlListProperty<Item>* list) {
                    if (auto* me = qobject_cast<Items*>(list->object))
                    {
                      return static_cast<size_type>(me->data.size());
                    }

                    return size_type{0};
                  },
                  [](QQmlListProperty<Item>* list, size_type at) -> Item* {
                    if (auto* me = qobject_cast<Items*>(list->object))
                    {
                      const auto position = static_cast<size_t>(at);
                      return me->data.size() > position ? &me->data[position] : nullptr;
                    }
                    return nullptr;
                  });
          }

          std::vector<Item> data;
      };



      Main.cpp

      {
          Items items;
      ...
          qmlRegisterSingletonInstance<Items>("test.chooser", 1, 0, "Items", &items);
          qmlRegisterUncreatableType<Item>("test.chooser", 1, 0, "Item", "");
          qmlRegisterUncreatableMetaObject(EnumNamespace::staticMetaObject, "test.chooser", 1, 0, "EnumNamespace", "Enum cannot be created");
      ...
      }

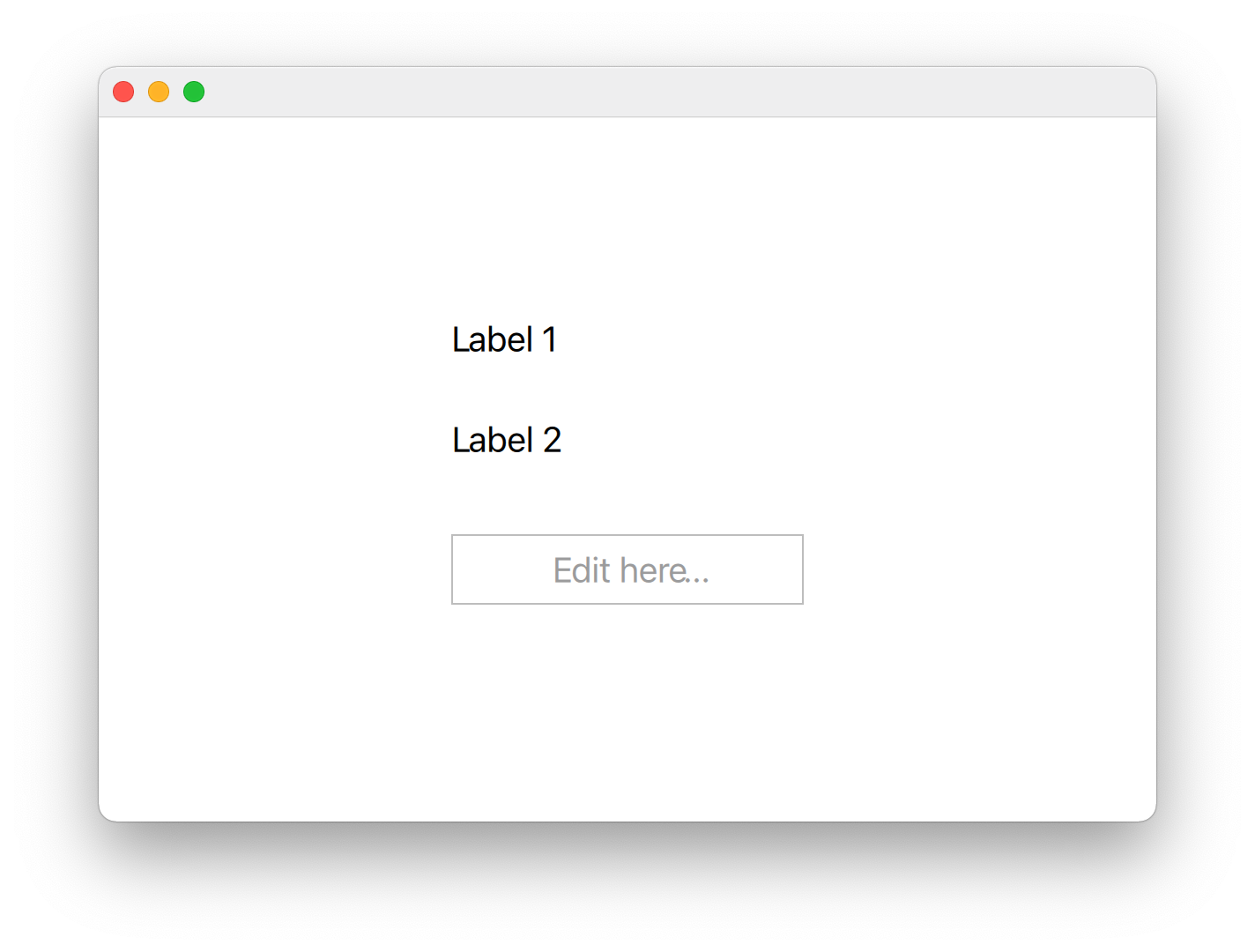

      Here is the result using with 5.15.2: (everything as expected)

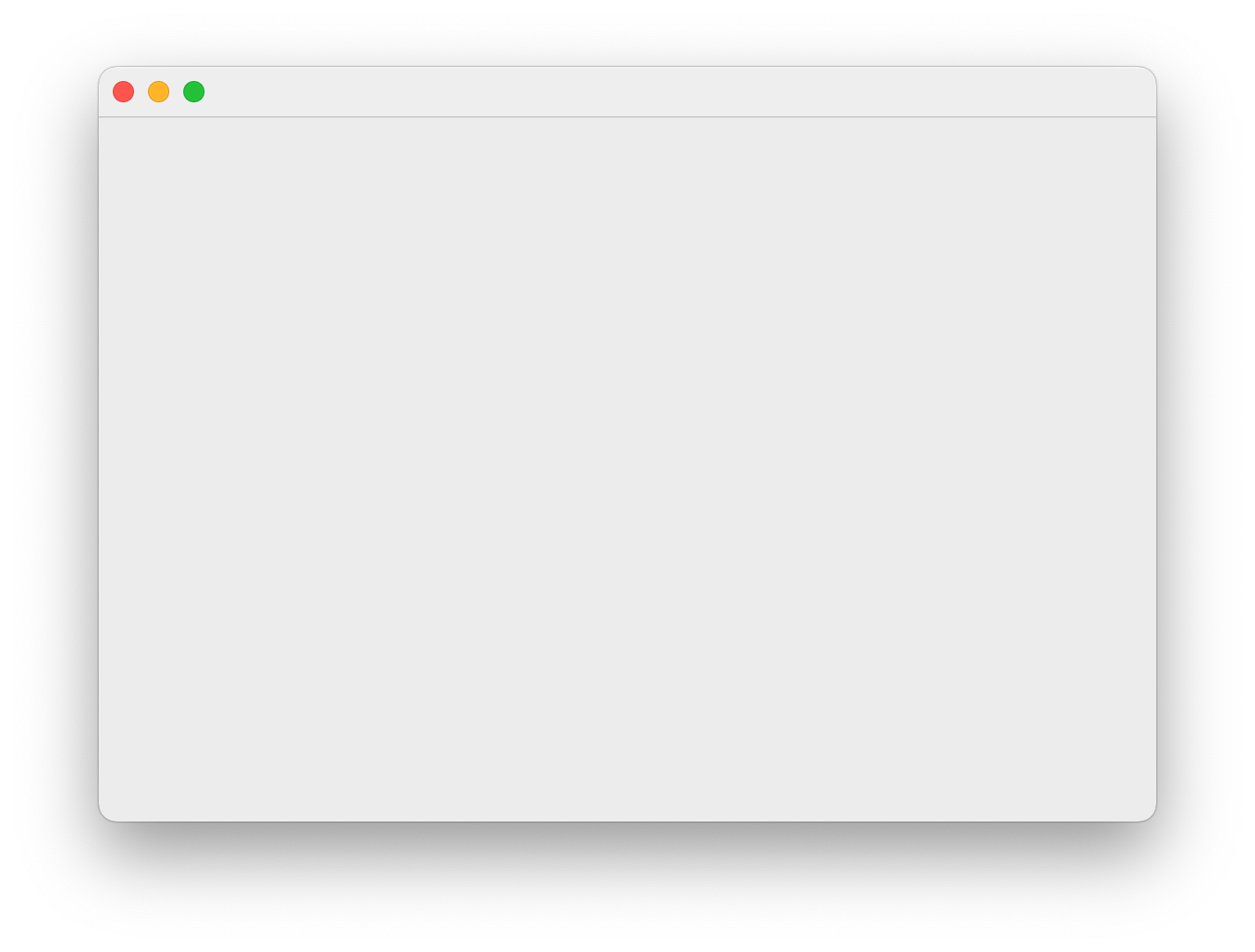

      Here is the result using with 6.2: (not showing the controls because the choice of the chooser was not located)
