  1. Qt
  2. QTBUG-69144

Positions of elements in RowLayout are not recalculated after one of them was hidden

    XMLWordPrintable

Details

    • Bug
    • Resolution: Unresolved
    • P2: Important
    • None
    • 5.9.6
    • Quick: Layouts
    • None
    • Windows 10
      VS 2017
    • Android, Windows

    Description

      The code:

      ApplicationWindow {
          id: appWin
          width: 640
          height: 480
          visible: true

          toolBar: ToolBar {
              id: tb
              style: ToolBarStyle {
                  padding { left: 4; right: 4; top: 2; bottom: 1 }
              }
              Flickable {
                  width: tbRow.width
                  height: tbRow.height
                  contentWidth: tbRow.implicitWidth
                  contentHeight: tbRow.implicitHeight
                  clip: true
                  RowLayout {
                      id: tbRow
                      width: appWin.width-8
                      spacing: 8
                      ToolButton { width: 48; height: 48; text: "A"
                                   onClicked: lastBtn.visible = !lastBtn.visible}
                      ToolButton { width: 48; height: 48; text: "B" }
                      ToolButton { width: 48; height: 48; text: "C" }
                      ToolButton { width: 48; height: 48; text: "D" }
                      ToolButton { width: 48; height: 48; text: "E" }
                      ToolButton { width: 48; height: 48; text: "F" }
                      ToolButton { width: 48; height: 48; text: "G" }
                      Item { Layout.fillWidth: true}
                      ToolButton { width: 48; height: 48; text: "Close"; id: lastBtn }
                  }
              }
          }
      }

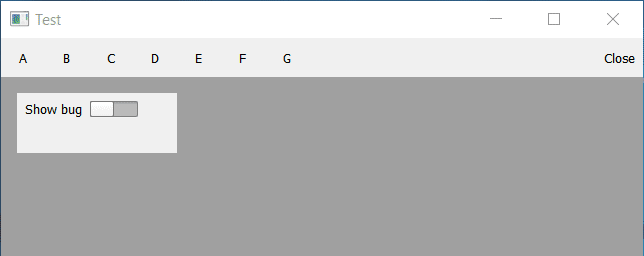

      When the lastBtn is hidden in runtime (by clicking on the first ToolButton) then the width of tbRow is not adjusted, so the whole toolbar can be swiped left (when the window width is decreased).
      But if the lastBtn is hidden in Qm id: lastBtn; visible: false then the width of tbRow is correct.
